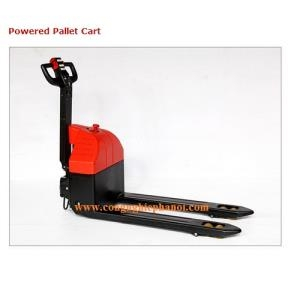

Manufacturer's type designation |
|
W20 |
|
|
Drive |
|
Electric |
|
|
Operator type |
|
Pedestrian |
|
|
Load capacity/rated load |
kg |
2000 |
|
|
Load centre distance |
mm |
600 |
|
|
Load distance |
mm |
950 |
|
|
Wheelbase |
mm |
1375 |
|
|
Service weight (with battery) |
kg |
610 |
|
|
Axle loading, laden front/rear |
kg |
1570/1040 |
|
|
Axle loading, unladen front/rear |
kg |
152/458 |
|
|
Tyres |
|
PU |
|
|
Tyre size, front |
mm |
80x120/80x80 |
|
|
Tyre size, rear |
mm |
115x55 |
|
|
Wheels number front/rear |
|
2(4)/2 |
|
|
Track width, rear |
mm |
720 |
|
|
Lift |
mm |
110 |
|
|
Height of tiller in drive position min./max. |
mm |
870/1220 |
|
|
Height lowered fork |
mm |
85 |
|
|
Overall length |
mm |
1830 |
|
|
Length to face of forks |
mm |
710 |
|
|
Overall width |
mm |
720 |
|
|
Fork dimensions |
mm |
1150/1200x185x55 |
|
|
Width across forks |
mm |
540/685 |
|
|
Aisle width for pallets 1000x1200 crossways |
mm |
2020 |
|
|
Aisle width for pallets 800x1200 lengthways |
mm |
1970 |
|
|
Turning radius |
mm |
1655 |
|
|
Travel speed, laden/unladen |
km/h |
3.5/3.5 |
|
|
Lift speed, laden/unladen |
m/s |
0.056/0.06 |
|
|
Lowering speed, laden/unladen |
m/s |
0.057/0.059 |
|
|
Gradeability, laden/unladen |
% |
5/7 |
|
|
Service brake |
|
electromagnetic |
|
|
Drive motor rating S260 min |
kW |
AC 1.5 |
|
|
Lift motor rating at S315% |
kW |
DC 2 |
|
|
Battery acc. to DIN 43531/35/36 A, B, C, no |
|
3PZS210 |
|
|
Battery voltage, nominal capacity |
V/Ah |
24/210 |
|
|
Battery weight |
kg |
200 |
|
|
Sound level at the driver's ear according to EN 12 053 |
dB(A) |
70 |
|
